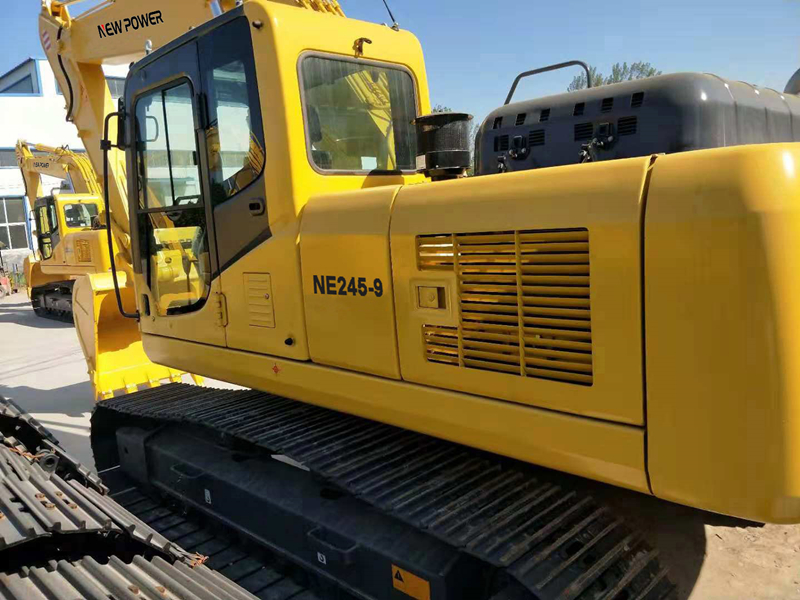

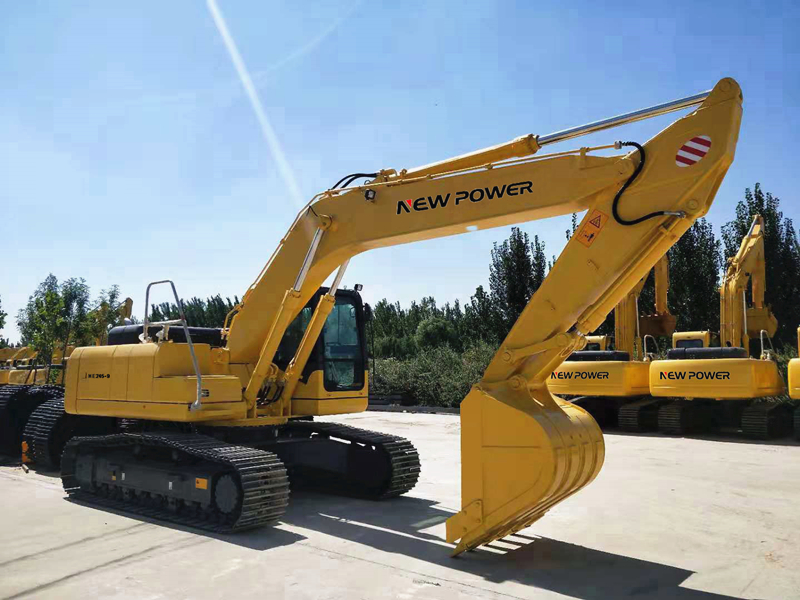

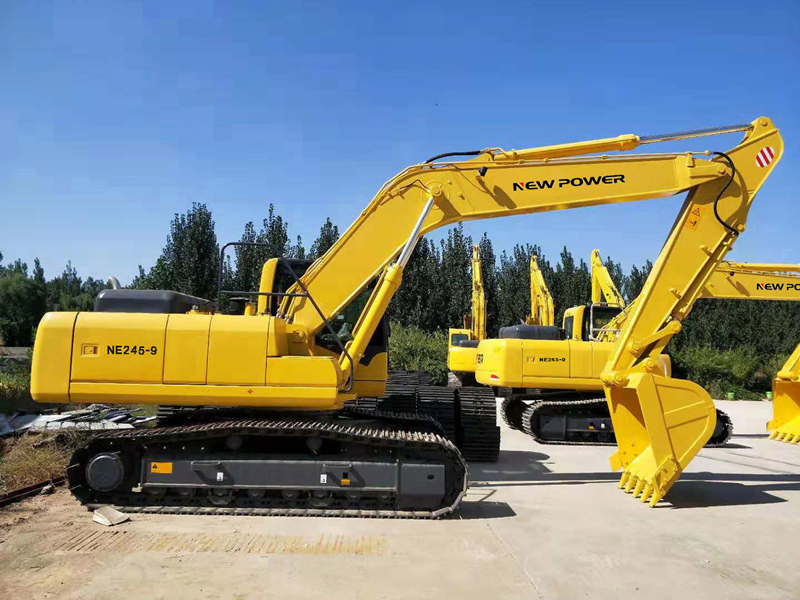

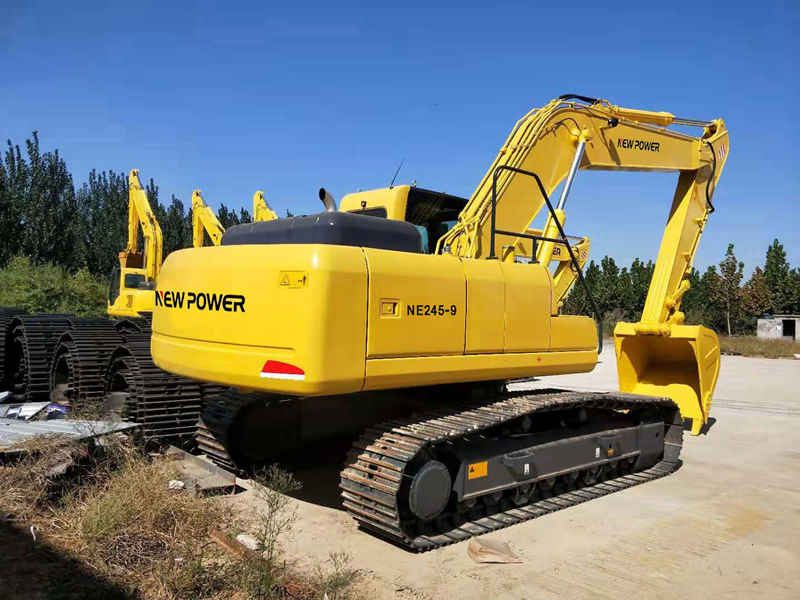

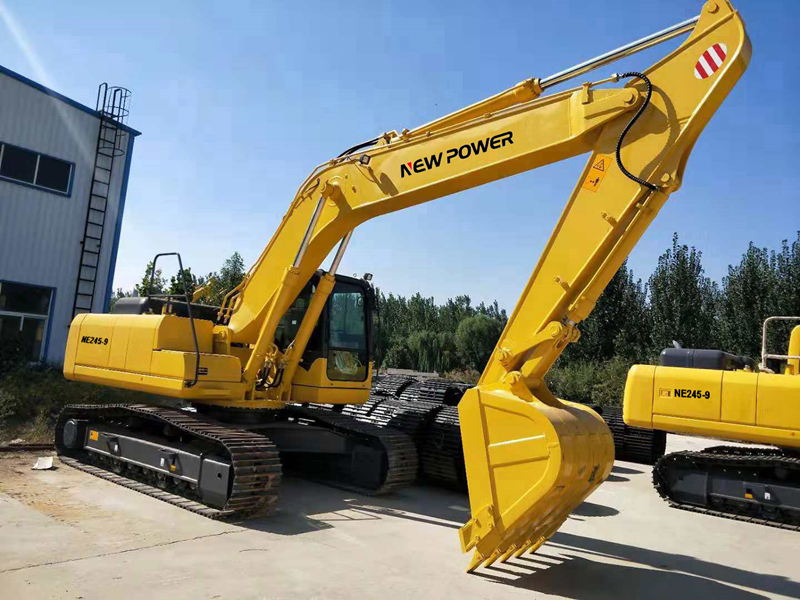

| Model | NE245-9 | |
| Operation weight (KG) | 23600 | |
| Bucket capacity (m3) | 1.2 | |

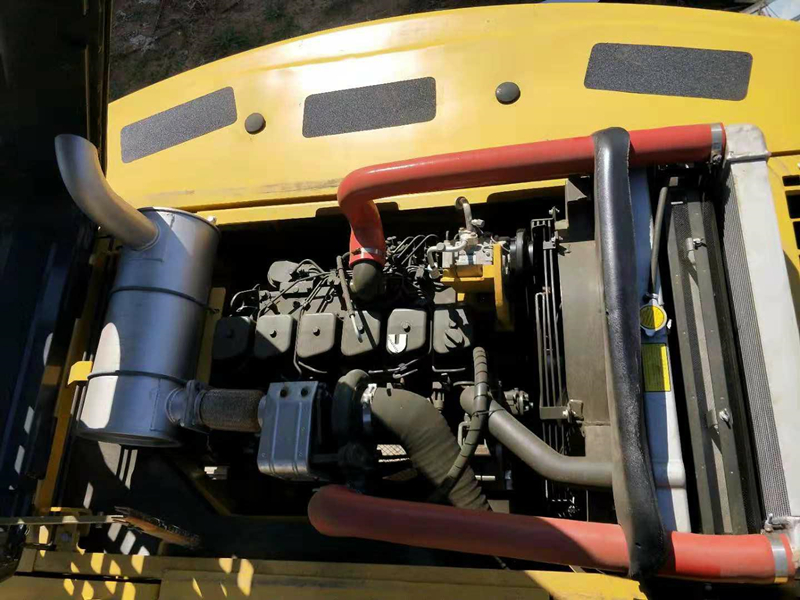

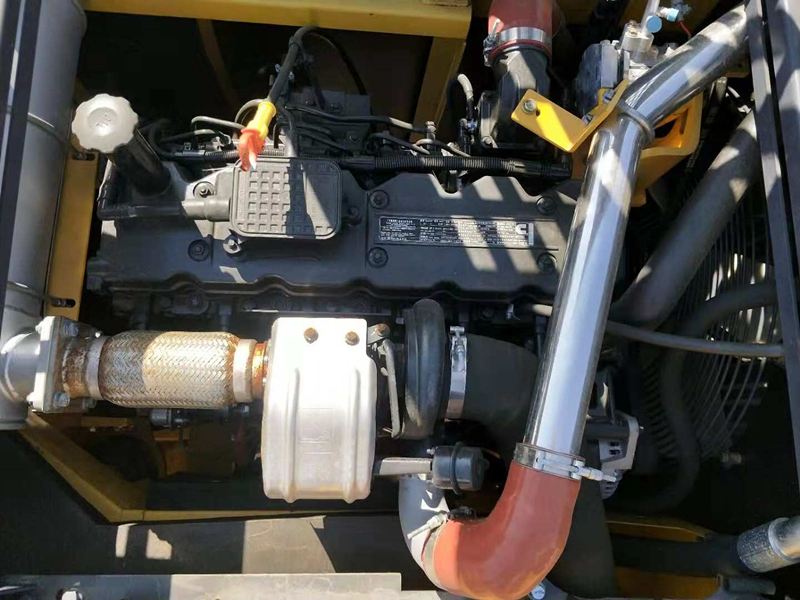

| Engine model | ISUZU 4HK1X | CUMMINS QSB7 |
| Rated power (kw/r/min) | 133/2000 | 140/2050 |
| Fuel tank (L) | 350 | |
| Walking speed(km/h) | 5.2/3.5 | |
| Swing speed(r/min) | 11 | |
| Max grade ability(%) | 70 | |
| Bucket digging force(KN) | 159 | |
| Ground pressure(KPa) | 49.4 | |

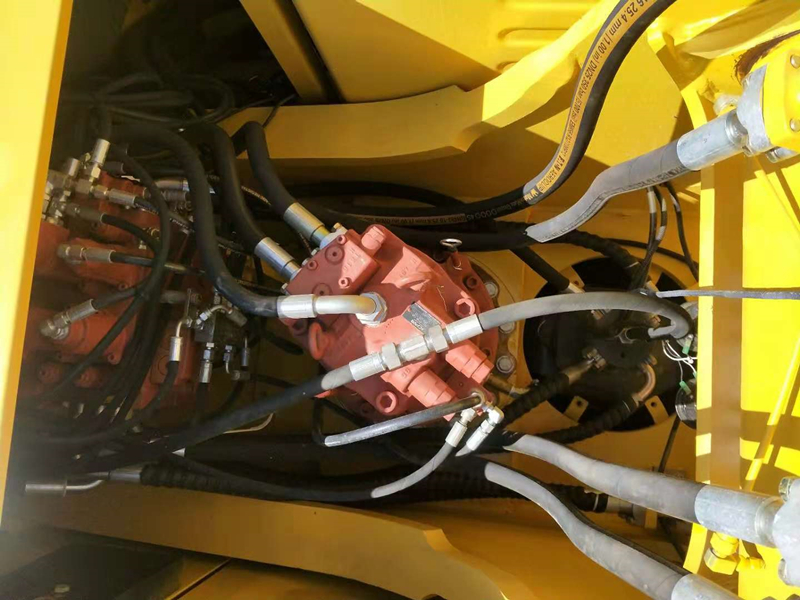

| Hydraulic pump model |
KAWASAKI K3V112DT |
|
| Max.Flow（L/min) | 226x2 | |
| Working pressure(MPa) | 34.3 | |
| Hydraylic oil tank(L) | 246 | |
| A-Overall length(mm) | 9850 | |
| B-Overall width(mm) | 2980 | |
| C-Total height(to the top of boom)(mm) | 3135 | |
| D-Total height(to the top of cab)(mm) | 3120 | |
| E-Ground clearance of counter weight (mm) | 1065 | |
| F-Min. ground clearance (mm) | 440 | |
| G-Tail swing radius(mm) | 2810 | |
| H-Track grounding length(mm) | 3640 | |
| J-Track length(mm) | 4450 | |
| K-Track base (mm) | 2380 | |
| L-Track width(mm) | 3190 | |
| M-Track shoe width(mm) | 600 | |
| N-Upper platform width(mm) | 2700 | |
| O-Max.digging height(mm) | 9310 | |
| P-Max.dumping height(mm) | 6440 | |
| Q-Max.digging depth(mm) | 6875 | |
| R-Max.vertical digging depth(mm) | 5860 | |
| S-Max.digging Depth for 2500mm Level Bottom(mm) | 6680 | |
| T-Max.digging distance | 10170 | |
| U-Max.digging distance at ground level(mm) | 9990 | |
| V-Min.swing radius(mm) | 3975 | |
| W-Max.height when min.swing radius (mm) | 7775 | |
| X-Distance from swing center to tail (mm) | 2810 | |
| Z-Counterweight height(mm) | 2120 | |
| A1-Grounding length (transport) (mm) | 5360 | |
| Arm length(mm) | 3050 | |
| Boom length(mm) | 5850 | |
